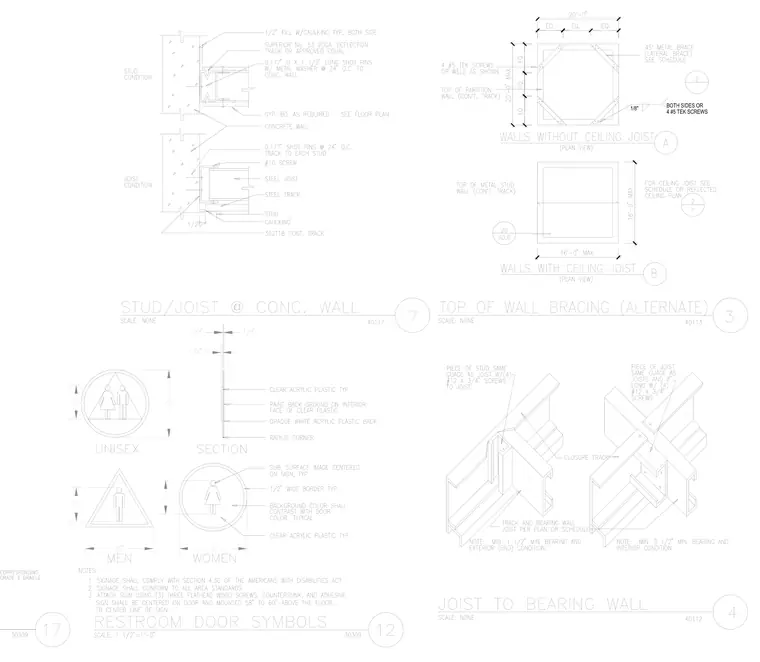

Partition wall top bracing with metal studs and joists is secured using four number five TEK screws or welded connections on both sides. Plan views illustrate walls with and without ceiling joists incorporating twenty-foot and sixteen-foot maximum dimensions. Diagonal metal braces provide lateral stability at wall corners.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
