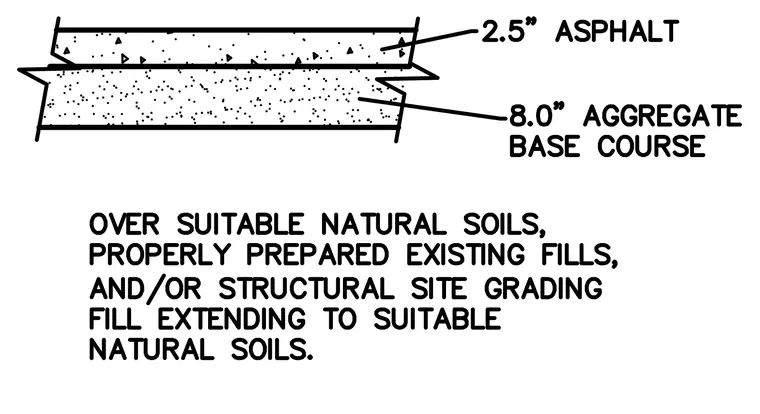

This pavement assembly consists of a two and a half inch thick asphalt surface course placed directly over an eight inch thick aggregate base course. The entire pavement structure is supported by suitable natural soils, properly prepared existing fills, or structural site grading fill that extends down to suitable natural soils.
