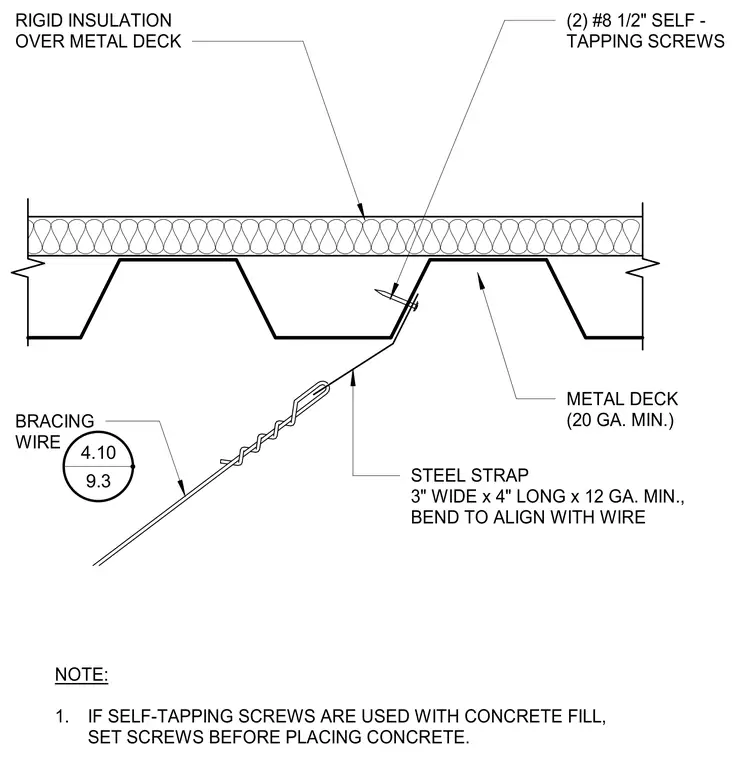

A bracing wire is secured to a metal deck with a minimum 20-gauge metal deck profile supporting rigid insulation above. A minimum 12-gauge steel strap, measuring 3 inches wide by 4 inches long, is bent to align with the wire and fastened to the metal deck rib using two number 8 by 1/2-inch self-tapping screws. If self-tapping screws are used with concrete fill over the metal deck, the screws must be set before placing the concrete.
BRACING WIRE METAL DECK (20 GA. MIN.) STEEL STRAP 3" WIDE x 4" LONG x 12 GA. MIN., BEND TO ALIGN WITH WIRE (2) #8 1/2" SELF - TAPPING SCREWS RIGID INSULATION OVER METAL DECK NOTE: 1. IF SELF-TAPPING SCREWS ARE USED WITH CONCRETE FILL, SET SCREWS BEFORE PLACING CONCRETE. 4.10 9.3
