Architectural · A-5BWBD

Upper and Lower Millwork Cabinet Assembly

Materials

Elements

About this detail

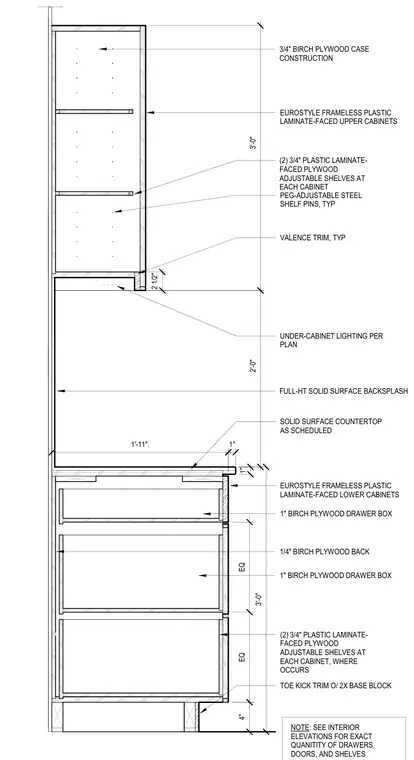

Interior millwork assembly comprising Eurostyle frameless plastic laminate-faced upper and lower cabinets constructed with 3/4-inch birch plywood case construction and 1/4-inch birch plywood backs. Upper cabinets feature two 3/4-inch plastic laminate-faced plywood adjustable shelves supported by typical peg-adjustable steel shelf pins, a valence trim, and under-cabinet lighting provided per plan. A full-height solid surface backsplash meets a solid surface countertop as scheduled above the lower cabinets. Lower cabinets include 1-inch birch plywood drawer boxes and two 3/4-inch plastic laminate-faced plywood adjustable shelves where applicable, supported on a toe kick trim over a 2x base block. Vertical dimensions indicate a 3-foot upper cabinet height, a 2-foot backsplash clearance, and a 3-foot lower cabinet height.
