Architectural · A-5BW8F

Rammed Earth Wall Termination at Escalator Enclosure

Materials

Concrete Steel Glass / Glazing Aluminum

Elements

Walls Retaining Walls Storefronts Waterproofing / Flashing

Connections

Welded Connection

About this detail

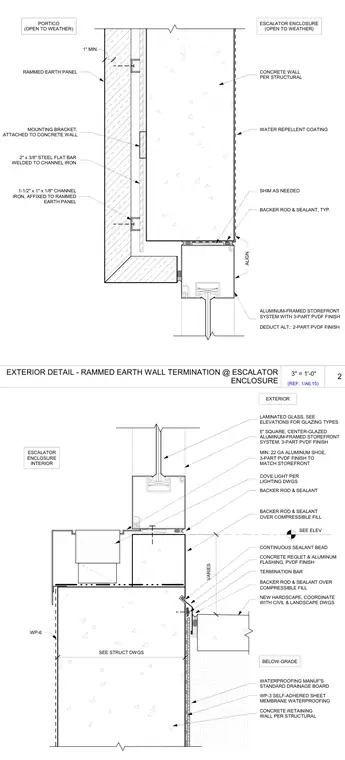

Termination of a rammed earth panel adjacent to an escalator enclosure, tied back to a structural concrete wall via a mounting bracket and 2" x 3/8" steel flat bar welded to a 1-1/2" x 1" x 1/8" channel iron affixed to the panel. Shims are provided as needed between the steel flat bar and the concrete wall. The assembly integrates an aluminum-framed storefront system featuring a 3-part PVDF finish, backer rod and sealant joints, and a 6" square center-glazed aluminum-framed storefront system with a minimum 22 gauge aluminum shoe at the interior transition. Below-grade portions incorporate a concrete retaining board, WP-3 self-adhered sheet membrane waterproofing, a waterproofing manufacturer's standard drainage board, and a concrete reglet with aluminum flashing and PVDF finish secured by a termination bar.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
