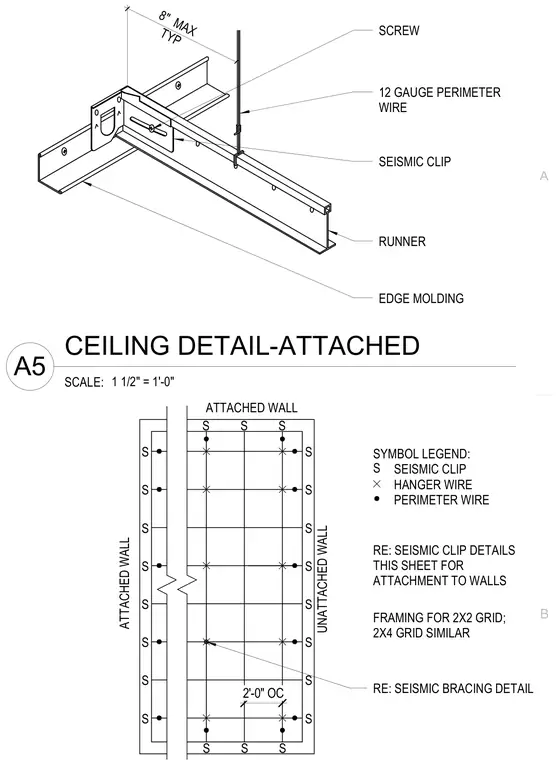

An edge molding supports the perimeter of a suspended ceiling runner connected to an attached wall. A 12-gauge perimeter wire with a seismic clip restrains the runner, spaced at a maximum of 8 inches typical. The plan layout details attached and unattached walls with 2-foot on-center spacing for seismic clips, hanger wires, and perimeter wires for a 2x2 grid.
12 GAUGE PERIMETER WIRE SEISMIC CLIP RUNNER EDGE MOLDING SCREW 8" MAX TYP SYMBOL LEGEND: SEISMIC CLIP HANGER WIRE PERIMETER WIRE UNATTACHED WALL RE: SEISMIC BRACING DETAIL RE: SEISMIC CLIP DETAILS THIS SHEET FOR ATTACHMENT TO WALLS ATTACHED WALL S S 2'-0" OC S S S S S S S S S S S S S S S S S S S S S ATTACHED WALL FRAMING FOR 2X2 GRID; 2X4 GRID SIMILAR B A SCALE: 1 1/2" = 1'-0" A5 CEILING DETAIL-ATTACHED
