Base Cabinet Section Detail

Elements

Walls Doors Floors / Slabs Millwork / Casework

About this detail

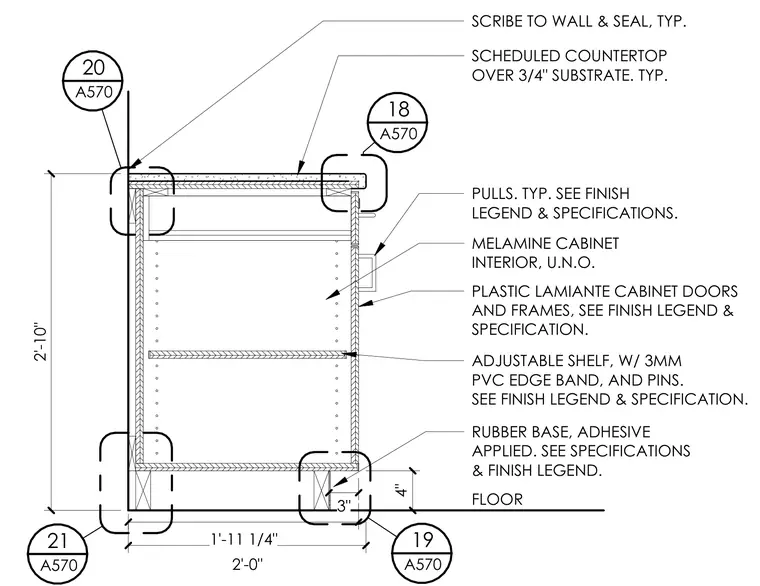

This base cabinet assembly stands two feet and ten inches tall with an overall depth of two feet. The unit features plastic laminate cabinet doors and frames mounted over a melamine interior with adjustable shelving supported by pins and finished with a three-millimeter PVC edge band. A scheduled countertop sits over a three-quarter-inch substrate, with the top edge scribed to the wall and sealed. The base includes a rubber base applied with adhesive above the floor line.
