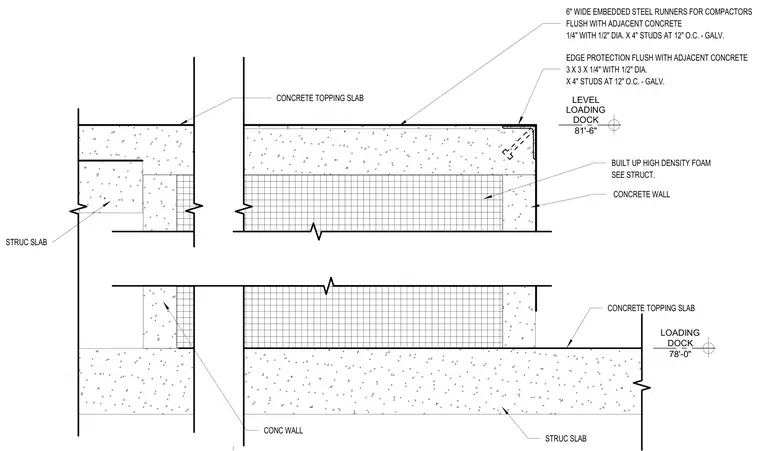

Concrete loading bay platform assembly featuring structural concrete slabs and concrete walls. A built-up high-density foam layer is integrated into the wall assembly as indicated on the structural drawings. The platform edge is protected by a 3x3x1/4-inch galvanized steel angle embedded with 1/2-inch diameter by 4-inch studs spaced at 12 inches on center, set flush with the adjacent concrete. Six-inch-wide embedded steel runners are also provided flush with the adjacent concrete for compactors, similarly anchored with 1/2-inch diameter by 4-inch studs at 12 inches on center.
S T R U C S L A B B U I L T U P H I G H D E N S I T Y F O A M S E E S T R U C T . C O N C R E T E T O P P I N G S L A B LOADING DOCK 78'-0" LEVEL LOADING DOCK 81'-6" C O N C R E T E T O P P I N G S L A B S T R U C S L A B C O N C R E T E W A L L C O N C W A L L E D G E P R O T E C T I O N F L U S H W I T H A D J A C E N T C O N C R E T E 3 X 3 X 1 / 4 " W I T H 1 / 2 " D I A . X 4 " S T U D S A T 1 2 " O . C . - G A L V . 6 " W I D E E M B E D D E D S T E E L R U N N E R S F O R C O M P A C T O R S F L U S H W I T H A D J A C E N T C O N C R E T E 1 / 4 " W I T H 1 / 2 " D I A . X 4 " S T U D S A T 1 2 " O . C . - G A L V .
