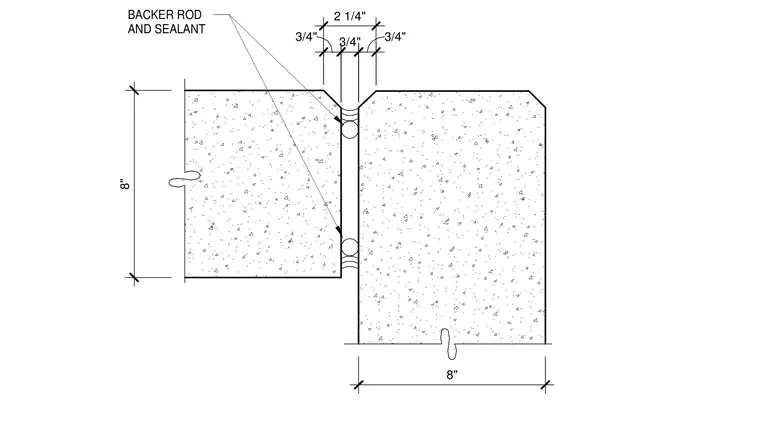

Two eight-inch concrete panels meet at a corner joint featuring a two-and-one-quarter-inch overall joint width with three-quarter-inch chamfered edges. Dual backer rods and sealant are installed within the vertical joint to seal the junction. Precise dimensional callouts indicate the joint spacing and panel thicknesses.
