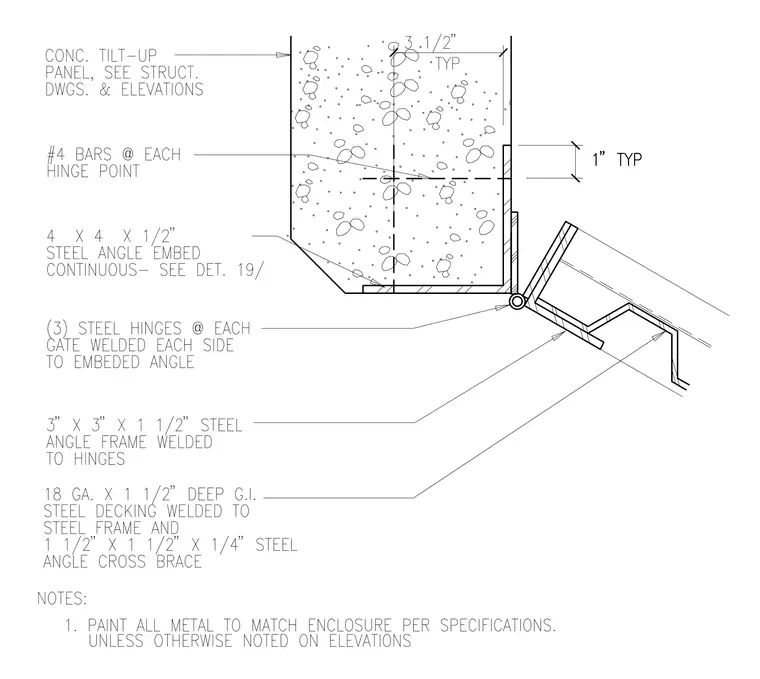

A concrete tilt-up panel connects to a swinging gate assembly utilizing a continuous four-by-four-by-one-half-inch steel angle embedment anchored with number four reinforcing bars at each hinge point. Three steel hinges are welded on each side to the embed angle and to a supporting three-by-three-by-one-and-one-half-inch steel angle frame. Eighteen gauge by one-and-one-half-inch deep galvanized iron steel decking is welded to the steel frame and reinforced with one-and-one-half-by-one-and-one-half-by-one-quarter-inch steel angle cross braces. All exposed metal is painted to match the enclosure per specifications unless otherwise noted on elevations.
