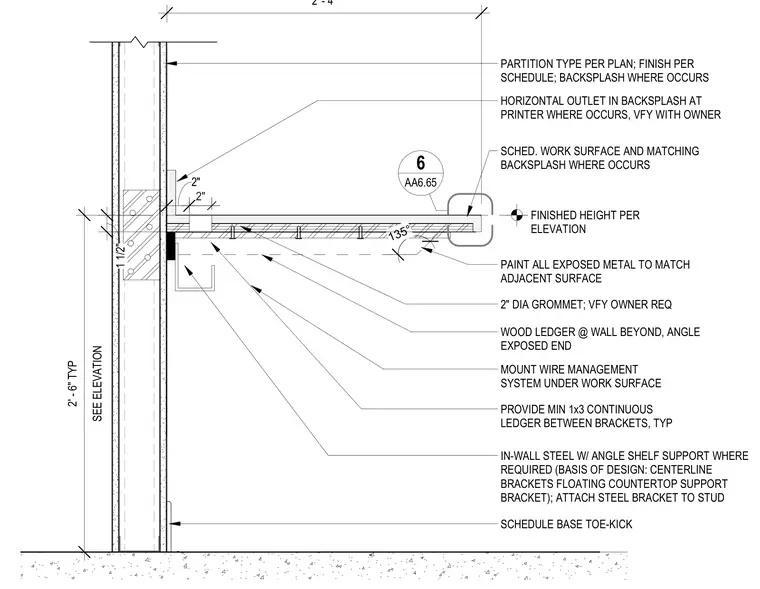

An in-wall steel angle shelf support bracket attaches directly to the partition framing to carry a floating worksurface. A minimum one-by-three continuous wood ledger runs between the brackets at the wall. The scheduled worksurface features a matching backsplash with an optional horizontal electrical outlet and a two-inch diameter wire management grommet. A wire management system mounts beneath the counter, and all exposed metal is painted to match adjacent surfaces.
SCHED. WORK SURFACE AND MATCHING BACKSPLASH WHERE OCCURS FINISHED HEIGHT PER ELEVATION IN-WALL STEEL W/ ANGLE SHELF SUPPORT WHERE REQUIRED (BASIS OF DESIGN: CENTERLINE BRACKETS FLOATING COUNTERTOP SUPPORT BRACKET); ATTACH STEEL BRACKET TO STUD PROVIDE MIN 1x3 CONTINUOUS LEDGER BETWEEN BRACKETS, TYP PARTITION TYPE PER PLAN; FINISH PER SCHEDULE; BACKSPLASH WHERE OCCURS MOUNT WIRE MANAGEMENT SYSTEM UNDER WORK SURFACE 2" 2" DIA GROMMET; VFY OWNER REQ 135° WOOD LEDGER @ WALL BEYOND, ANGLE EXPOSED END PAINT ALL EXPOSED METAL TO MATCH ADJACENT SURFACE 2" 2' - 4" SEE ELEVATION 2' - 6" TYP SCHEDULE BASE TOE-KICK HORIZONTAL OUTLET IN BACKSPLASH AT PRINTER WHERE OCCURS, VFY WITH OWNER 1 1/2" AA6.65 6
