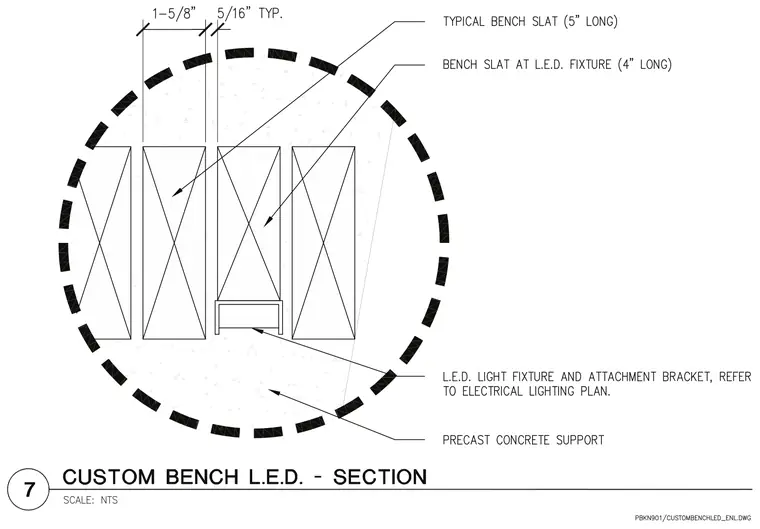

A custom precast concrete bench support features five-inch-long typical bench slats and a modified four-inch-long bench slat housing an LED light fixture and attachment bracket. Spacing between slats is five-sixteenths of an inch typical with a one-and-five-eighths-inch offset. The LED light fixture and bracket are coordinated with the electrical lighting plan.
