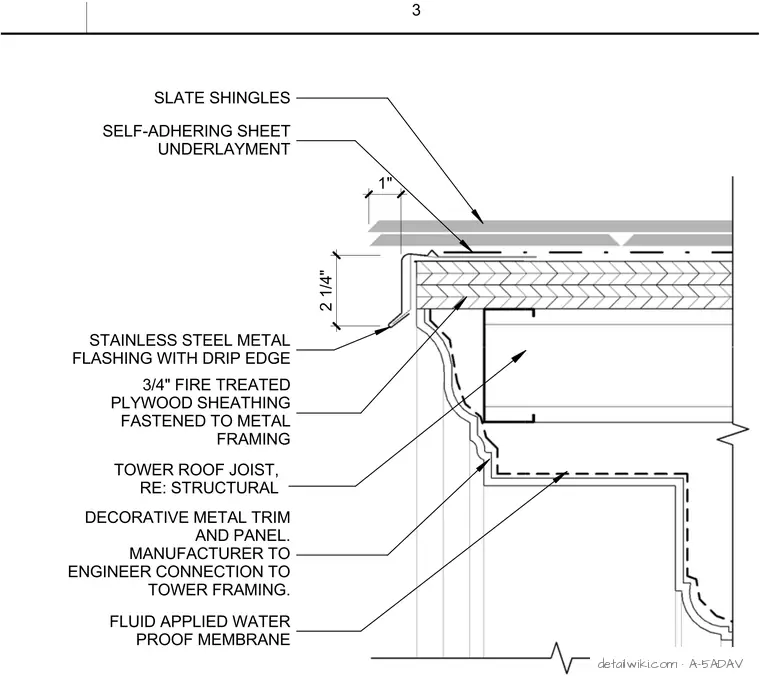

A-5ADAV — Typ Tower Rake Detail

Architectural · A-5ADAV

Typ Tower Rake Detail

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Cold-formed Steel Membrane / Roofing Metal (misc.)Stainless Steel Steel Stone Timber / Wood

Elements

Beams Connections / Plates Roofs Waterproofing / Flashing

Text on the drawing

1" STAINLESS STEEL METAL FLASHING WITH DRIP EDGE 3/4" FIRE TREATED PLYWOOD SHEATHING FASTENED TO METAL FRAMING SLATE SHINGLES SELF-ADHERING SHEET UNDERLAYMENT TOWER ROOF JOIST, RE: STRUCTURAL DECORATIVE METAL TRIM AND PANEL. MANUFACTURER TO ENGINEER CONNECTION TO TOWER FRAMING. 2 1/4" FLUID APPLIED WATER PROOF MEMBRANE 3

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
