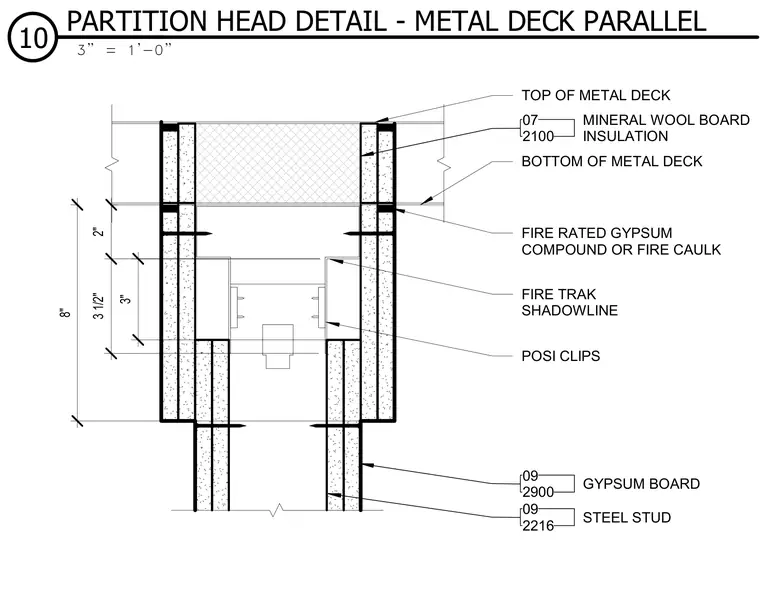

Steel stud partition framing terminates below a parallel metal deck assembly utilizing a fire track shadowline and posi clips. Mineral wool board insulation fills the flutes of the metal deck above the partition head. Gypsum board clads both sides of the steel studs, with fire-rated gypsum compound or fire caulk sealing the joint at the underside of the deck.
TOP OF METAL DECK BOTTOM OF METAL DECK FIRE TRAK SHADOWLINE POSI CLIPS FIRE RATED GYPSUM COMPOUND OR FIRE CAULK 8" 3 1/2" 2" 3" 07 2100 MINERAL WOOL BOARD INSULATION 09 2900 GYPSUM BOARD 09 2216 STEEL STUD 3" = 1'-0" 10 PARTITION HEAD DETAIL - METAL DECK PARALLEL
