Architectural · A-5A6HY

Platform Edge and Stair Nosing Detail

Materials

Concrete Steel

Elements

Stairs Floors / Slabs Decks Insulation

Connections

Shear Stud / Composite

About this detail

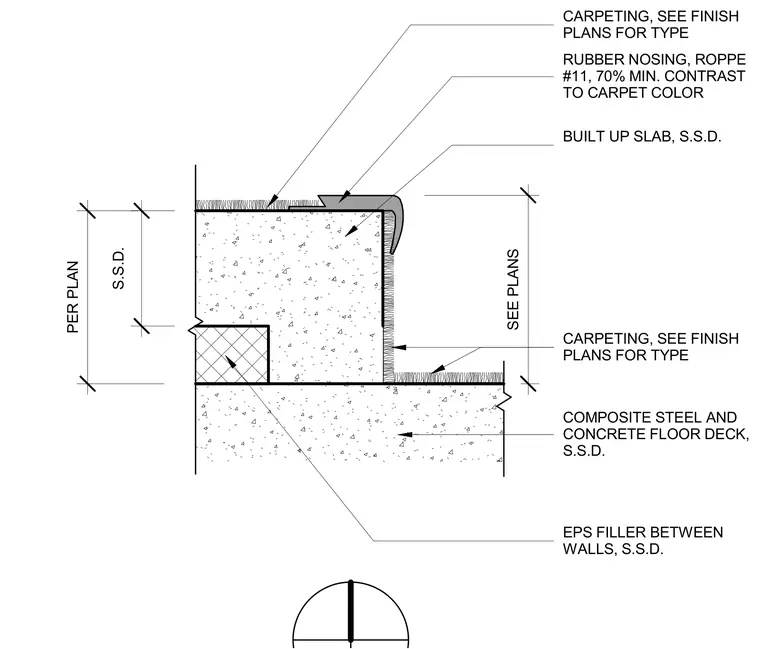

This architectural detail shows an elevated platform edge terminating above a composite steel and concrete floor deck. The built-up concrete slab features carpeting on the top and face, finished with a Roppe number 11 rubber nosing at the outer corner providing the required contrast to the carpet color. An expanded polystyrene filler is placed between walls below the assembly as indicated per plan. Flooring types and dimensions are coordinated with finish plans.
