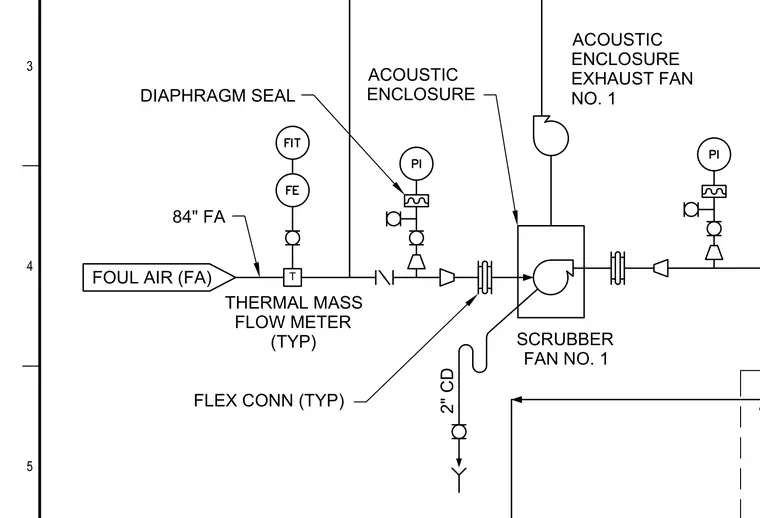

Foul air ductwork connects to a scrubber fan enclosure through an eighty-four-inch duct equipped with a thermal mass flow meter. A diaphragm seal isolates the pressure instrumentation on the line. Flexible connections are installed typically throughout the system to isolate vibration near the scrubber fan and acoustic enclosure exhaust fan.
T 5 4 3 FLEX CONN (TYP) FOUL AIR (FA) SCRUBBER FAN NO. 1 ACOUSTIC ENCLOSURE ACOUSTIC ENCLOSURE EXHAUST FAN NO. 1 2" CD DIAPHRAGM SEAL 84" FA THERMAL MASS FLOW METER (TYP)
