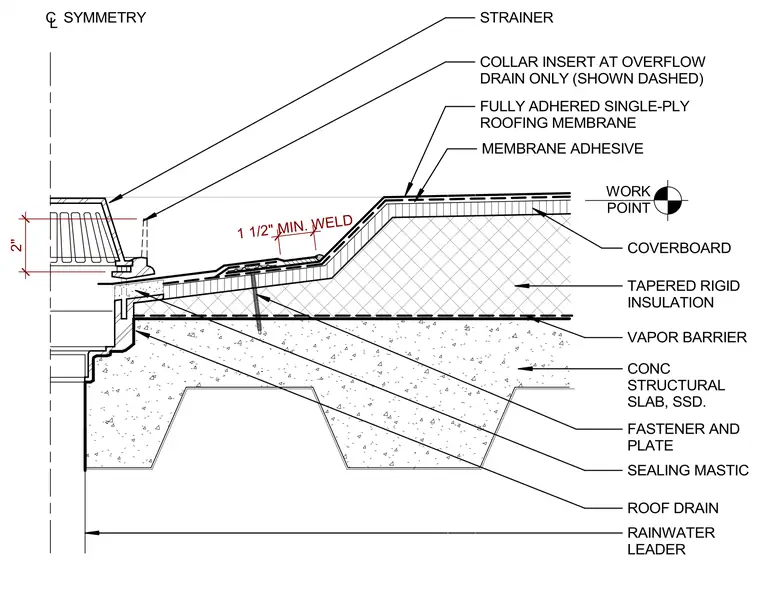

This roof drain assembly integrates into a concrete structural slab topped with a vapor barrier and tapered rigid insulation. A coverboard sits beneath the fully adhered single-ply roofing membrane, which is secured using membrane adhesive along with mechanical fasteners and plates. The roof drain features a strainer and a rainwater leader, with an optional collar insert shown dashed for overflow drain applications. Sealing mastic is applied around the drain connection to maintain continuity of the waterproofing layer.
STRAINER ROOF DRAIN RAINWATER LEADER CL SYMMETRY COVERBOARD CONC STRUCTURAL SLAB, SSD. COLLAR INSERT AT OVERFLOW DRAIN ONLY (SHOWN DASHED) TAPERED RIGID INSULATION 2" FULLY ADHERED SINGLE-PLY ROOFING MEMBRANE POINT WORK 1 1/2" MIN. WELD FASTENER AND PLATE SEALING MASTIC MEMBRANE ADHESIVE VAPOR BARRIER
