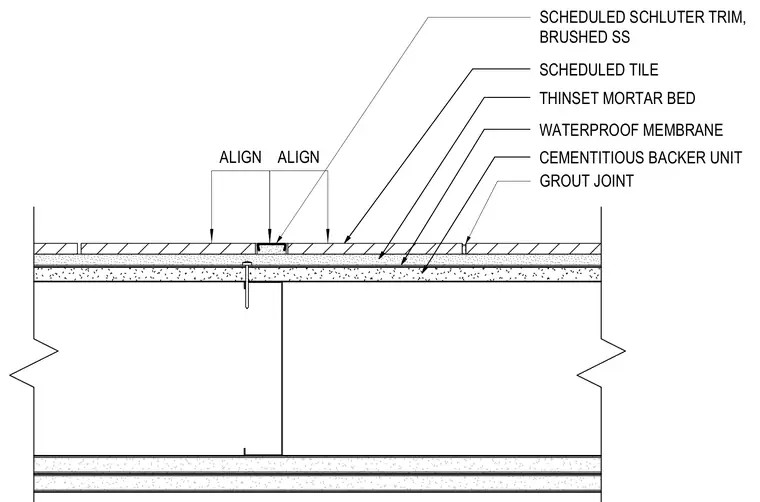

This flushed tile transition detail incorporates scheduled tile set in a thinset mortar bed over a cementitious backer unit and waterproof membrane. A scheduled Schluter trim in brushed stainless steel provides a clean edge termination between aligned tile surfaces. Grout joints are aligned across the transition as indicated. The backer unit is fastened to the underlying framing substrate.
SCHEDULED SCHLUTER TRIM, BRUSHED SS SCHEDULED TILE THINSET MORTAR BED CEMENTITIOUS BACKER UNIT WATERPROOF MEMBRANE ALIGN ALIGN GROUT JOINT
