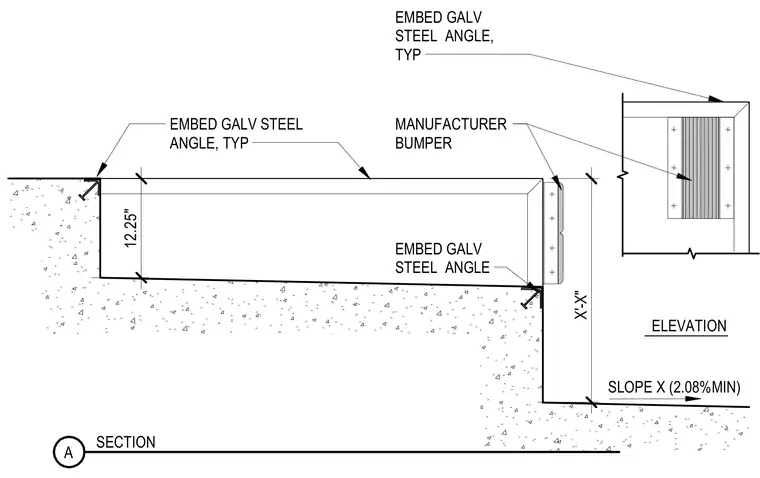

Embedded galvanized steel angles anchor into the concrete edge to protect the corner and provide a durable load-bearing termination. A manufacturer bumper mounts to the vertical face with mechanical fasteners. The concrete slab features a typical minimum slope of two point zero eight percent and a vertical dimension of twelve point two five inches.
EMBED GALV STEEL ANGLE EMBED GALV STEEL ANGLE, TYP SLOPE X (2.08%MIN) SECTION A MANUFACTURER BUMPER ELEVATION EMBED GALV STEEL ANGLE, TYP 12.25" X'-X"
