Architectural · A-59E3F

Wall Cabinet Section and Anchorage Detail

Materials

Elements

Walls Doors Ceilings Millwork / Casework

About this detail

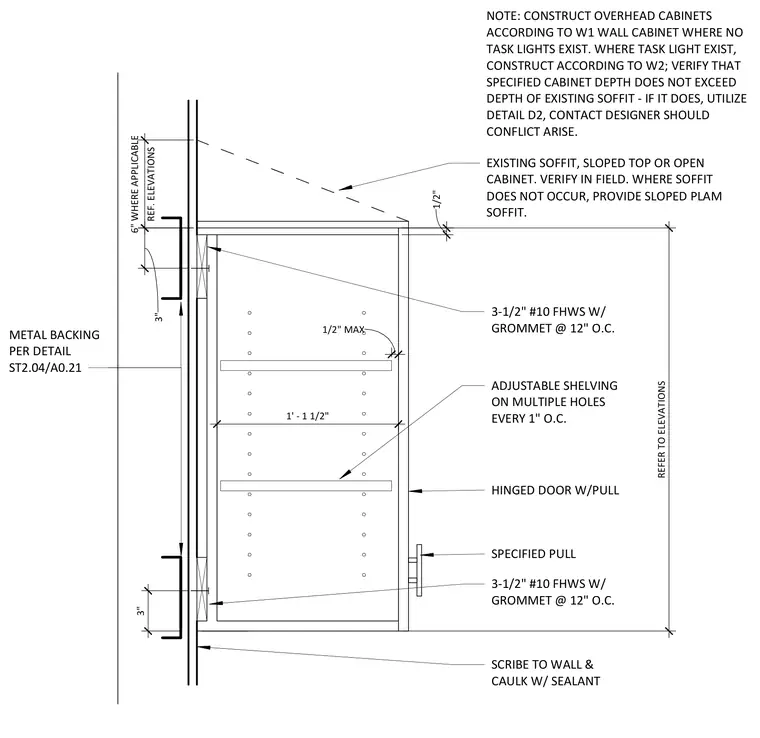

An overhead wall cabinet mounts to structural metal backing spaced per detail ST2.04/A0.21 using three-and-a-half-inch number ten flat head wood screws with grommets at twelve inches on center. The cabinet features adjustable shelving supported on multiple holes spaced every one inch on center and includes hinged doors with specified pulls. Scribe pieces at the wall are finished with a bead of sealant. Field conditions determine the presence of an existing soffit, sloped top, or open cabinet, with a sloped plastic-laminate soffit provided where no soffit occurs.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
