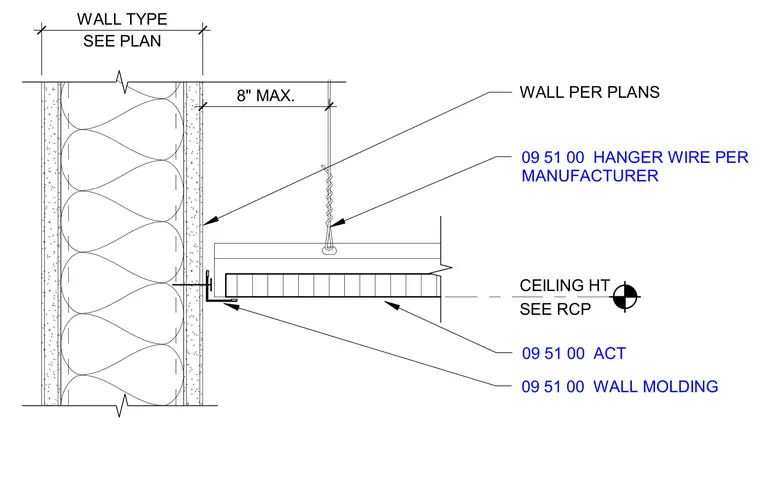

An acoustical ceiling tile grid terminates at a partition wall supported by a perimeter wall molding secured to the wall per plans. Hanger wire spaced per manufacturer requirements supports the ceiling grid with the first hanger located a maximum of eight inches from the wall. The wall type is specified per plans and acoustical ceiling tile is installed per section 09 51 00.
CEILING HT SEE RCP 09 51 00 WALL MOLDING 09 51 00 HANGER WIRE PER MANUFACTURER 09 51 00 ACT WALL PER PLANS 8" MAX. SEE PLAN WALL TYPE
