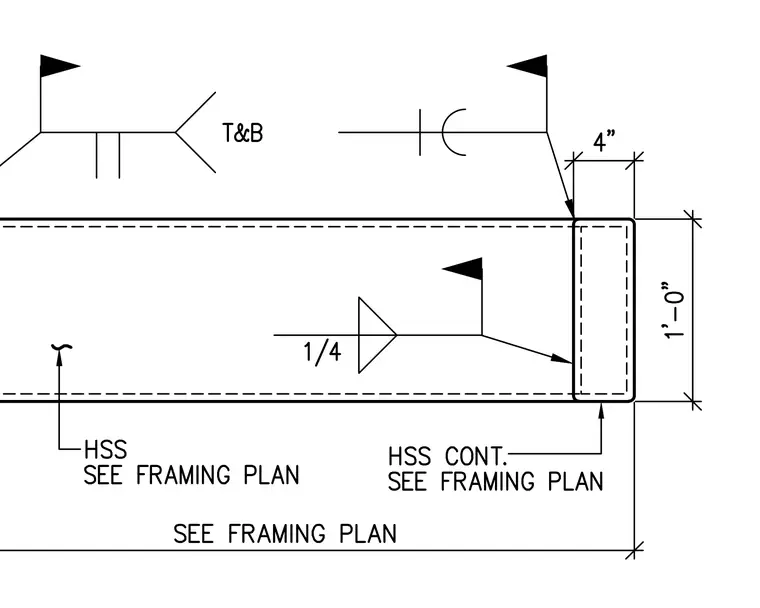

A hollow structural section member connects to a continuous hollow structural section member, with member sizes sized per framing plan. A quarter-inch fillet weld secures the assembly. Additional dimensions indicate a four-inch offset and a one-foot-zero-inch total height.
