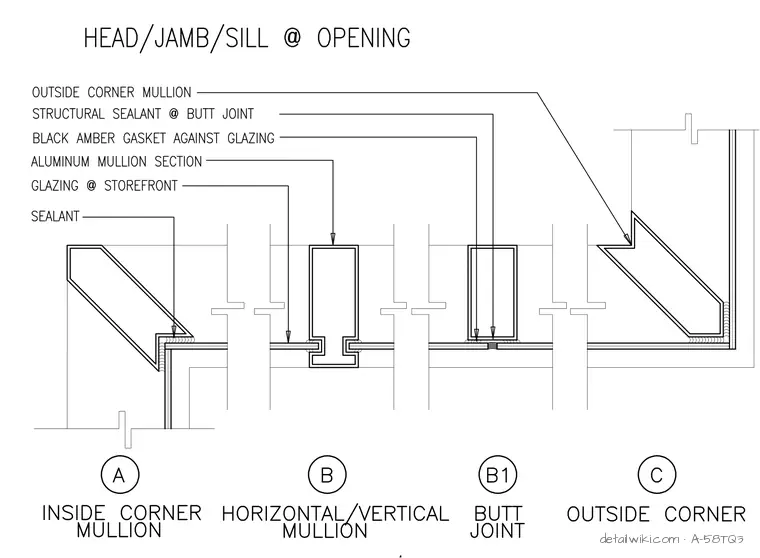

Storefront framing details showing inside corner mullions, standard aluminum mullion sections, vertical butt joints with structural sealant, and outside corner mullions. Glazing is held in place with black amber gaskets against the glass and sealed with perimeter sealant. Structural sealant is applied at the butt joints between glass panes. The assembly integrates various mullion types for directional changes and intermediate spans in a storefront system.
