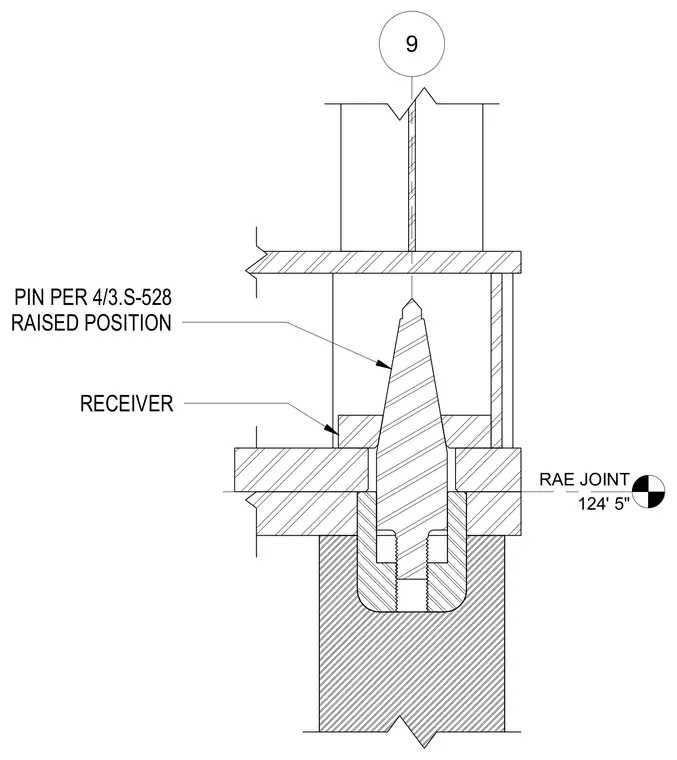

A raised position pin and receiver assembly located at joint elevation 124'-5". The pin is installed per detail 4/3.S-528, engaging with a matching receiver plate. The assembly accommodates alignment or movement at the joint connection.
