Architectural · A-588XG

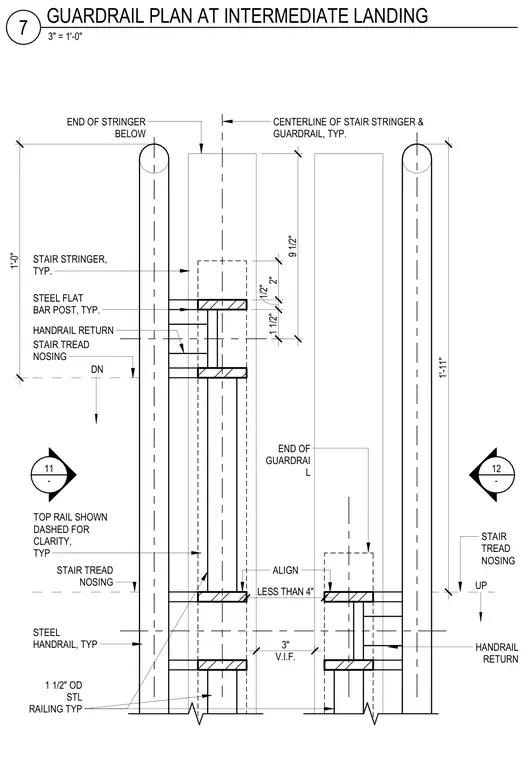

Guardrail Plan at Intermediate Landing

Materials

Elements

About this detail

A steel guardrail and handrail assembly occurs at an intermediate stair landing. The one-and-a-half-inch outside diameter steel railing aligns with typical steel flat bar posts spaced along the stair stringer centerline. Handrail returns terminate cleanly at the stair tread nosings, maintaining the required clearances and less than four-inch spacing limits. The top rail is shown dashed for clarity, and dimensions indicate the precise alignment relative to the stair stringer and tread nosings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
