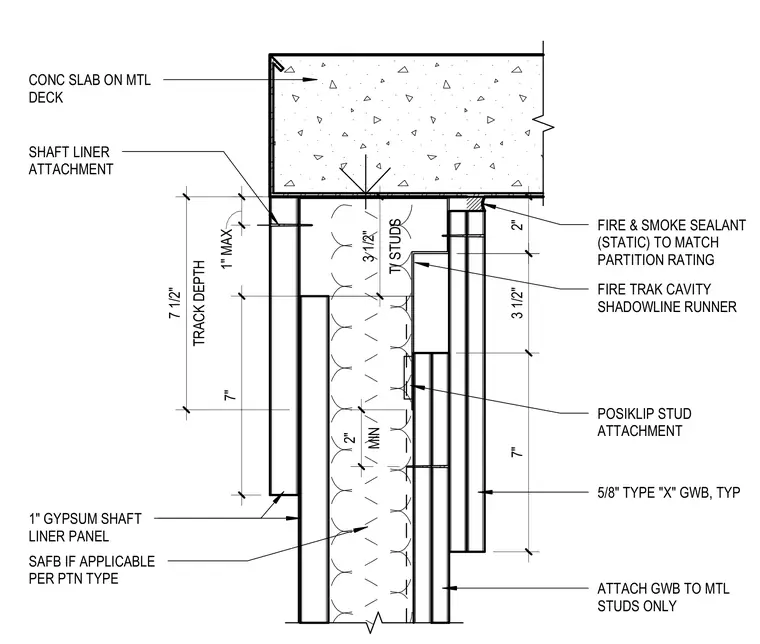

This two-hour rated shaftwall head detail interfaces with a two-inch concrete slab on a metal deck using a minimum two-inch track depth. A fire track cavity shadowline runner is secured at the underside of the slab, accompanied by static fire and smoke sealant matched to the partition rating. One-inch gypsum shaft liner panels are supported by shaft liner attachments and sound attenuation fire blanket insulation where applicable per partition type. Framing includes three-and-a-half-inch studs with Posiklip stud attachments and five-eighths-inch Type X gypsum wallboard fastened exclusively to metal studs.
FIRE & SMOKE SEALANT (STATIC) TO MATCH PARTITION RATING POSIKLIP STUD ATTACHMENT 5/8" TYPE "X" GWB, TYP 1" MAX 1" GYPSUM SHAFT LINER PANEL FIRE TRAK CAVITY SHADOWLINE RUNNER SHAFT LINER ATTACHMENT SAFB IF APPLICABLE PER PTN TYPE 2" CONC SLAB ON MTL DECK ATTACH GWB TO MTL STUDS ONLY MIN 2" TRACK DEPTH 7 1/2" 7" 7" 3 1/2" T/ STUDS 3 1/2"
