Architectural · A-57VFF

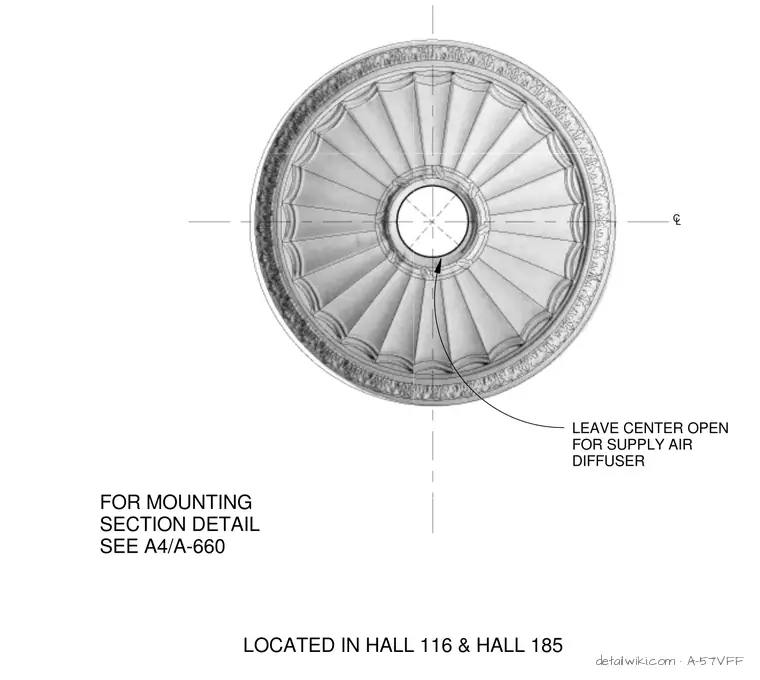

T201 - Custom Medallion

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Elements

Ceilings Millwork / Casework

Text on the drawing

LEAVE CENTER OPEN FOR SUPPLY AIR DIFFUSER CL LOCATED IN HALL 116 & HALL 185 FOR MOUNTING SECTION DETAIL SEE A4/A-660
