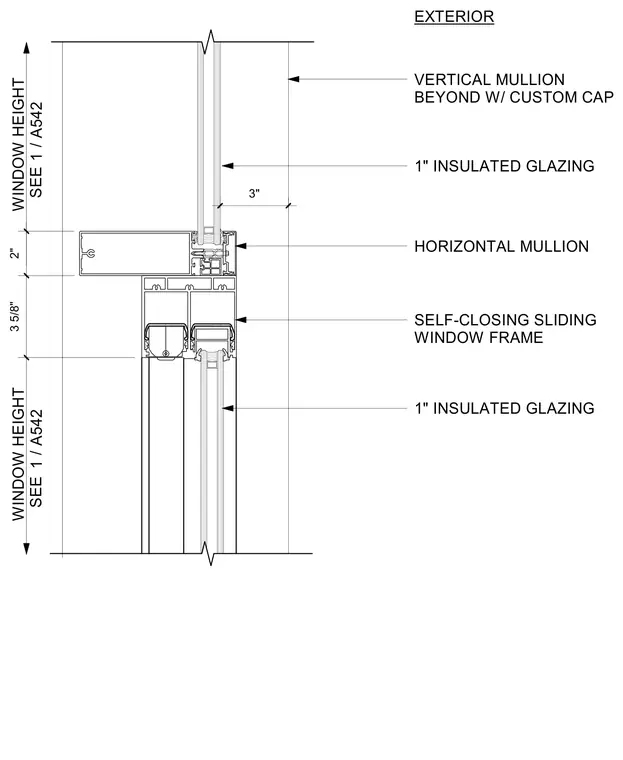

A take-out window head assembly includes a self-closing sliding window frame and a horizontal mullion. The upper and lower lites consist of one-inch insulated glazing units. A vertical mullion with a custom cap is positioned beyond the assembly. Window heights are referenced to sheet A542.
3" EXTERIOR 2" 3 5/8" WINDOW HEIGHT SEE / 1 A542 WINDOW HEIGHT SEE / 1 A542 VERTICAL MULLION BEYOND W/ CUSTOM CAP 1" INSULATED GLAZING HORIZONTAL MULLION SELF-CLOSING SLIDING WINDOW FRAME 1" INSULATED GLAZING
