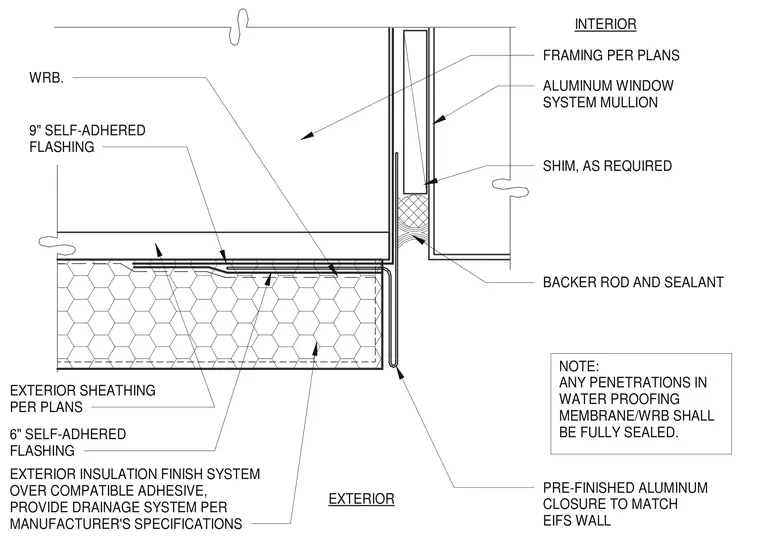

An aluminum window system mullion sets against framing per plans with shims as required and a perimeter joint sealed with backer rod and sealant. A pre-finished aluminum closure matching the exterior insulation and finish system wall transitions from the frame. The exterior wall assembly comprises exterior sheathing, weather-resistant barrier, and exterior insulation and finish system over compatible adhesive with a manufacturer-specified drainage system. Six-inch and nine-inch self-adhered flashings tie the rough opening to the weather-resistant barrier. All penetrations in the waterproofing membrane and weather-resistant barrier require full sealing.
NOTE: ANY PENETRATIONS IN WATER PROOFING MEMBRANE/WRB SHALL BE FULLY SEALED. SHIM, AS REQUIRED ALUMINUM WINDOW SYSTEM MULLION 9" SELF-ADHERED FLASHING EXTERIOR SHEATHING PER PLANS PRE-FINISHED ALUMINUM CLOSURE TO MATCH EIFS WALL BACKER ROD AND SEALANT FRAMING PER PLANS EXTERIOR INTERIOR WRB. EXTERIOR INSULATION FINISH SYSTEM OVER COMPATIBLE ADHESIVE, PROVIDE DRAINAGE SYSTEM PER MANUFACTURER'S SPECIFICATIONS 6" SELF-ADHERED FLASHING
