Architectural · A-57R82

Curtain Wall Sill and Floor Slab Transition Detail

Materials

Steel Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

Columns Walls Curtain Walls Facades / Cladding Ceilings Floors / Slabs

About this detail

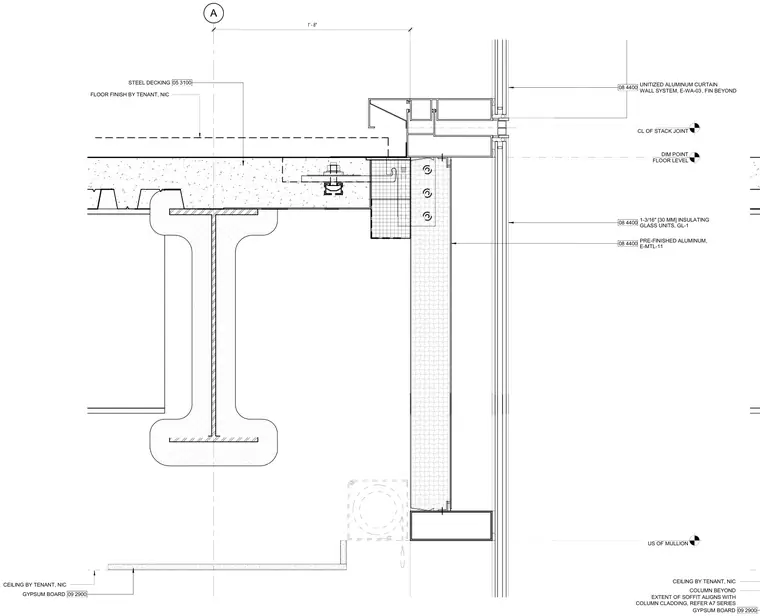

A unitized aluminum curtain wall system featuring 1-3/16 inch insulating glass units and pre-finished aluminum panels connects to the edge of a concrete floor slab over steel decking and a wide-flange steel floor beam. The sill assembly aligns with the floor level dimension point and center line of stack joint, incorporating interior gypsum board soffit framing and tenant-finished ceilings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
