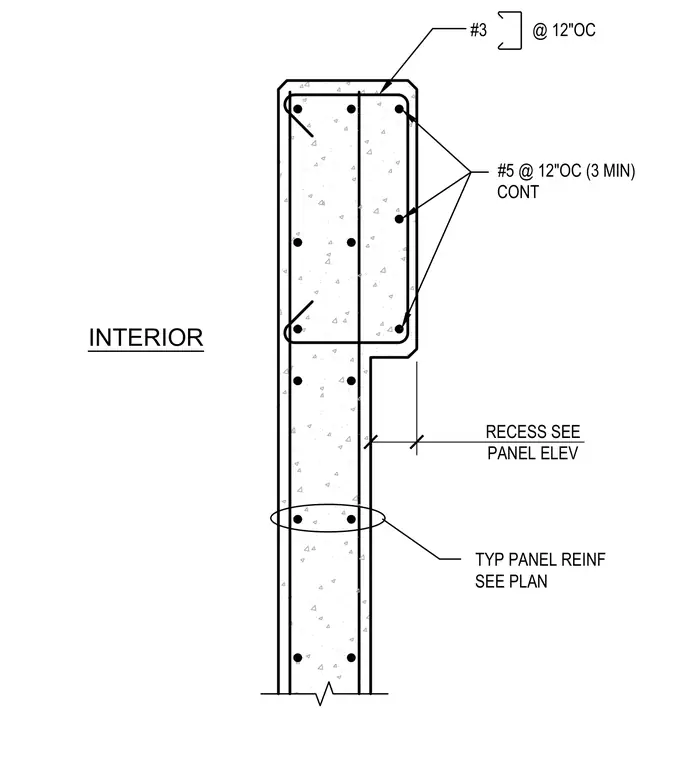

This precast concrete wall panel cross-section details the internal reinforcing steel and profile transitions. The thickened upper portion incorporates continuous number five reinforcing bars placed at twelve inches on center with a minimum of three bars. Number three stirrups or ties are spaced at twelve inches on center. A wall recess is located per the panel elevation, and typical panel reinforcement continues as specified on the plan.
RECESS SEE PANEL ELEV #3 @ 12"OC TYP PANEL REINF SEE PLAN #5 @ 12"OC (3 MIN) CONT INTERIOR
