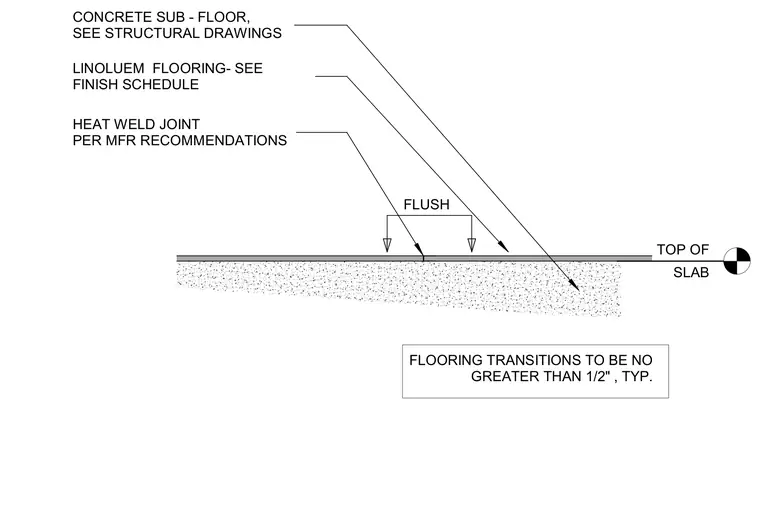

Linoleum flooring is installed over a concrete subfloor with a heat weld joint installed per the manufacturer's recommendations. Flush flooring transitions are detailed to be no greater than one-half inch typical.
SLAB TOP OF HEAT WELD JOINT PER MFR RECOMMENDATIONS LINOLUEM FLOORING- SEE FINISH SCHEDULE CONCRETE SUB - FLOOR, SEE STRUCTURAL DRAWINGS FLUSH FLOORING TRANSITIONS TO BE NO GREATER THAN 1/2" , TYP.
