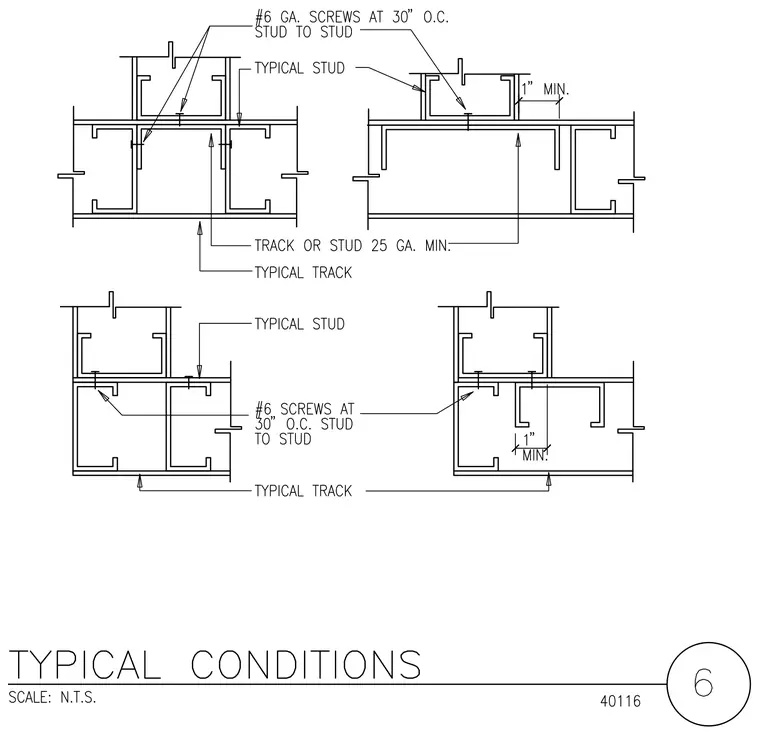

Cold-formed steel partitions intersect using typical tracks and studs fastened with number six gauge screws spaced at thirty inches on center. The assemblies incorporate twenty-five gauge minimum tracks and studs configured in various intersecting layouts with one inch minimum clearances specified. Fasteners connect framing members directly through abutting flanges and webs to maintain structural alignment.
