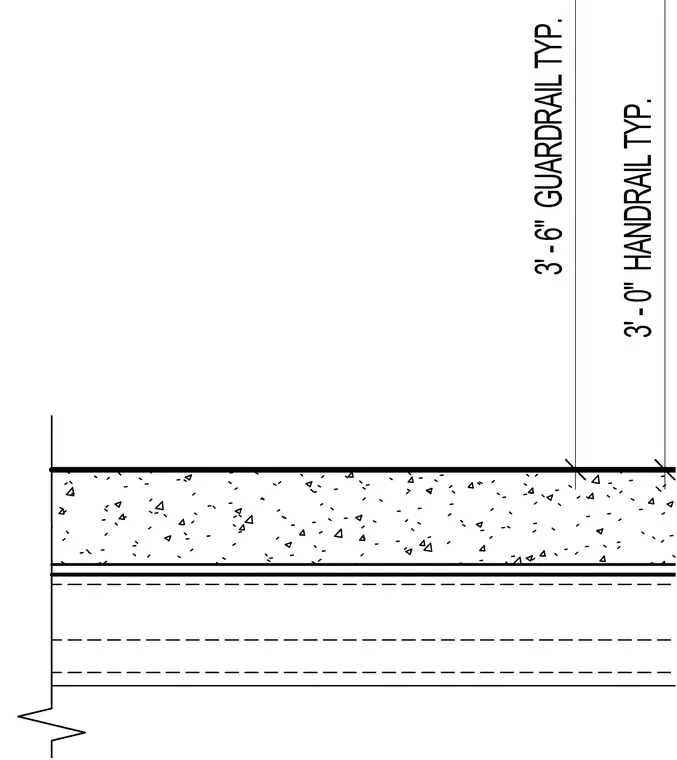

A typical stair assembly indicates standard vertical clearances with a 3'-6" guardrail height and a 3'-0" handrail height measured above the stair construction.
3' - 6" GUARDRAIL TYP. 3' - 0" HANDRAIL TYP.
