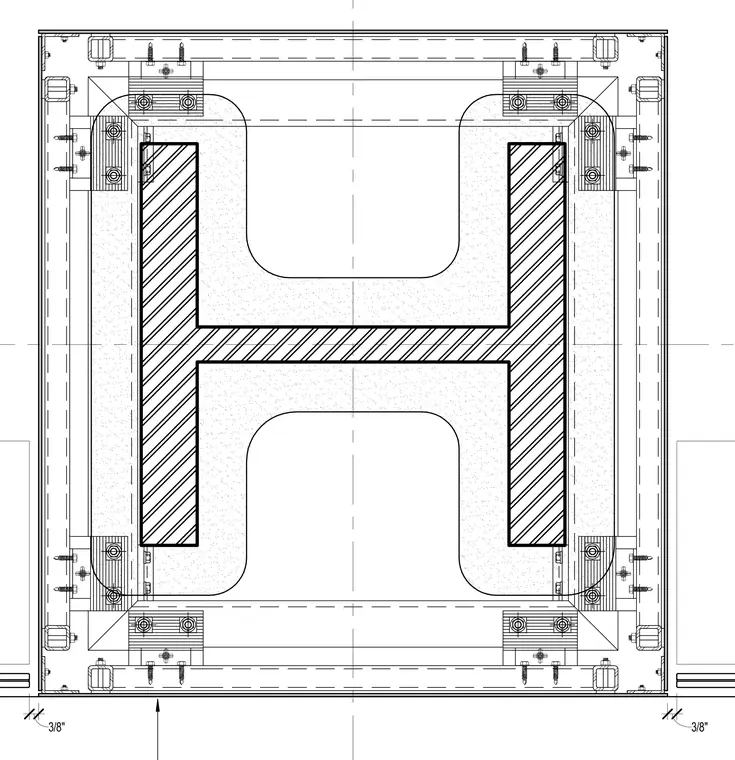

This assembly details a custom light interference shutter system enclosing a structural steel H-section core. The central H-section member is framed by inner and outer channel and hollow structural sections secured with threaded fasteners. Adjustable mounting brackets and hardware maintain precise 3/8-inch clearances around the perimeter. The outer housing features segmented panels anchored to the internal framing.
