Architectural · A-5777K

Concrete Stair Tread and Steel Riser Assembly

Materials

Concrete Steel

Elements

Stairs Anchors / Embeds Connections / Plates

Connections

Welded Connection Embed Plate

About this detail

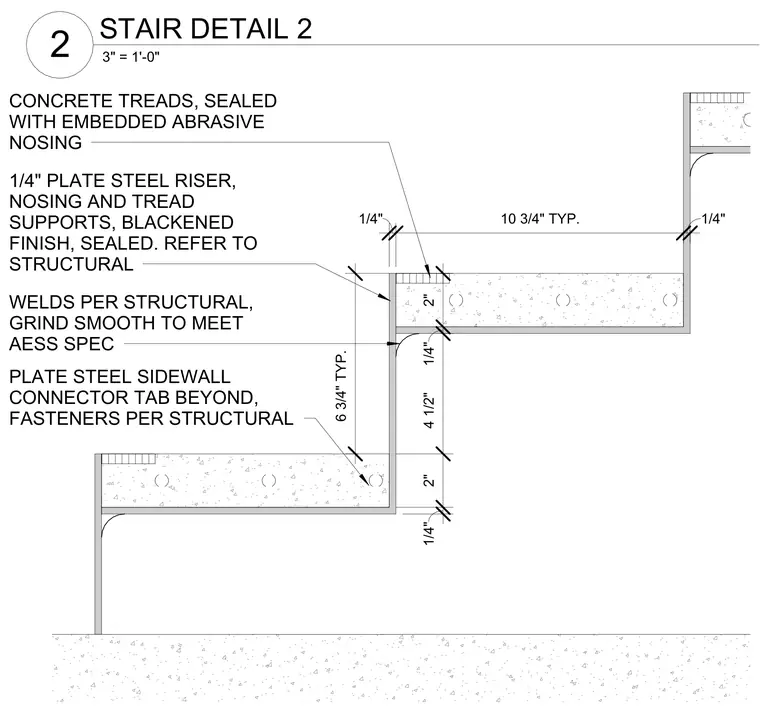

Concrete treads with embedded abrasive nosings receive support from quarter-inch plate steel risers, nosings, and tread supports finished with a blackened sealed coating. Welds are executed per structural specifications and ground smooth to meet architecturally exposed structural steel requirements. A plate steel sidewall connector tab located beyond utilizes fasteners specified by structural drawings.
