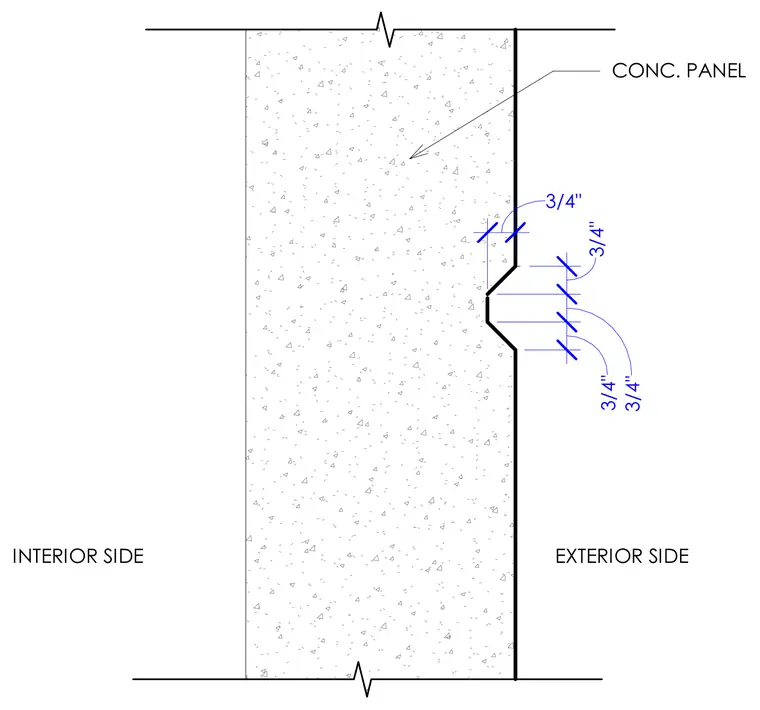

An architectural concrete wall panel features a recessed reveal profile on its exterior face. The profile incorporates three-quarter inch dimensions for the setbacks and depth, creating a stepped shadow line. The interior side remains flat and uniform.
EXTERIOR SIDE CONC. PANEL INTERIOR SIDE 3/4" 3/4" 3/4" 3/4"
