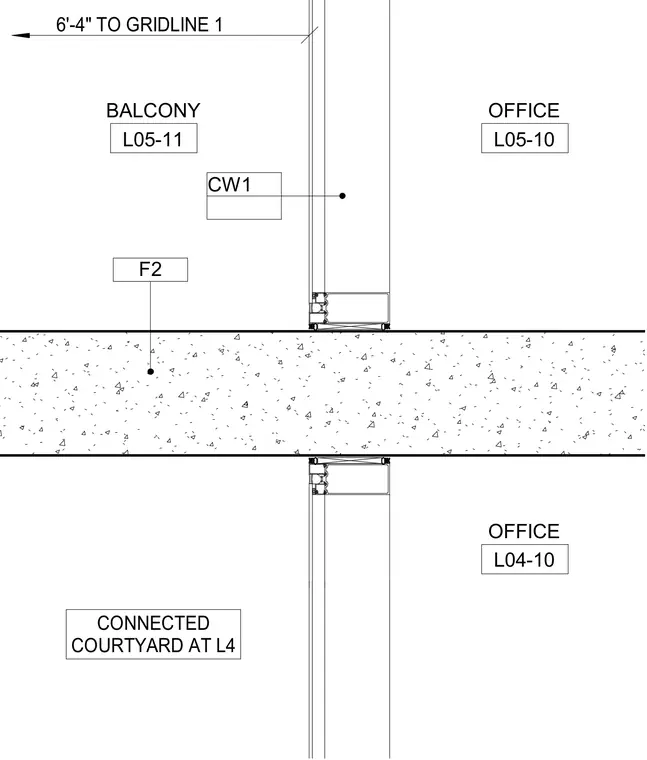

A curtain wall system meets a concrete floor slab separating exterior balcony and interior office areas. The curtain wall framing aligns with the slab edge, maintaining continuity between upper and lower levels.
F2 BALCONY L05-11 OFFICE L05-10 OFFICE L04-10 CONNECTED COURTYARD AT L4 CW1 6'-4" TO GRIDLINE 1
