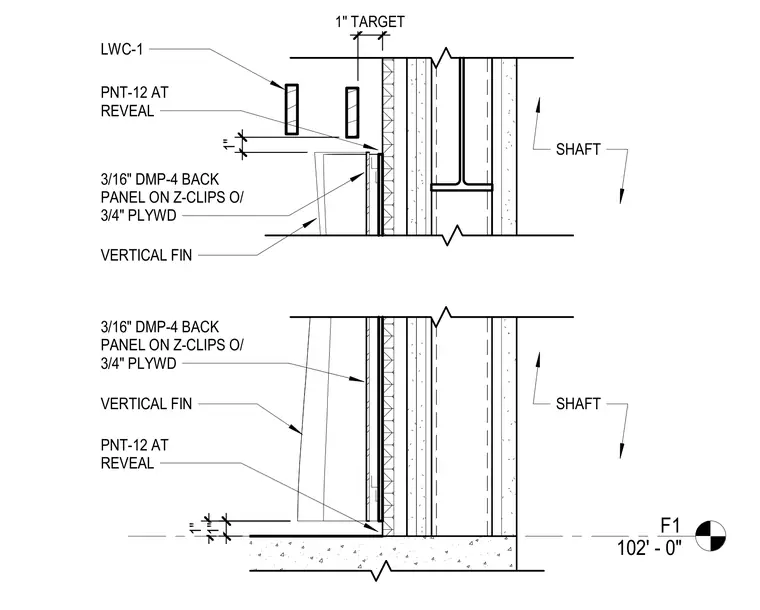

Vertical fins are installed over a three-sixteenth-inch back panel on z-clips and three-quarter-inch plywood at a shaft wall. A one-inch reveal is maintained between the vertical fin and the adjacent finish. The assembly includes finish paint designation PNT-12 at the reveal and an architectural wall finish labeled LWC-1.
F1 102' - 0" SHAFT 3/16" DMP-4 BACK PANEL ON Z-CLIPS O/ 3/4" PLYWD VERTICAL FIN PNT-12 AT REVEAL 1 " 1 " SHAFT 3/16" DMP-4 BACK PANEL ON Z-CLIPS O/ 3/4" PLYWD VERTICAL FIN PNT-12 AT REVEAL LWC-1 1 " T A R G E T 1 "
