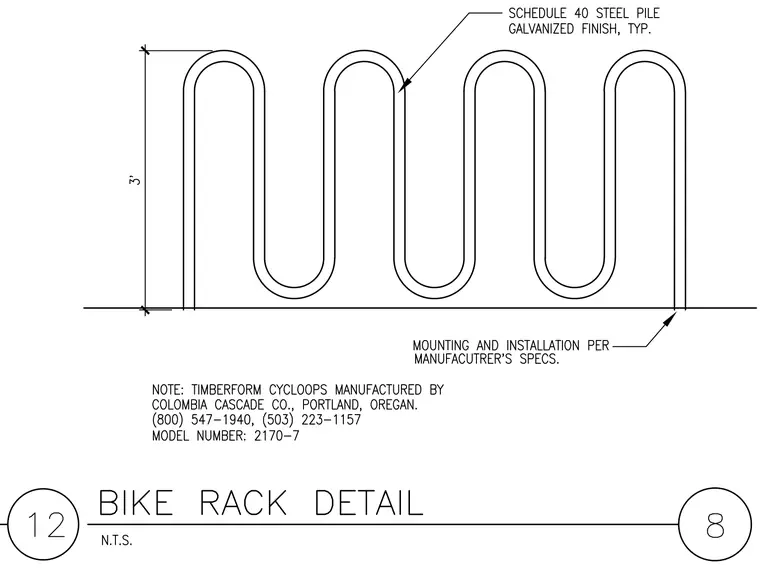

A standard serpentine bicycle rack constructed from schedule forty steel pipe with a galvanized finish stands three feet tall from the mounting surface and is installed according to the manufacturer's specifications. It is identified as a Timberform Cycloops model number 2170-7 manufactured by Columbia Cascade Company.
