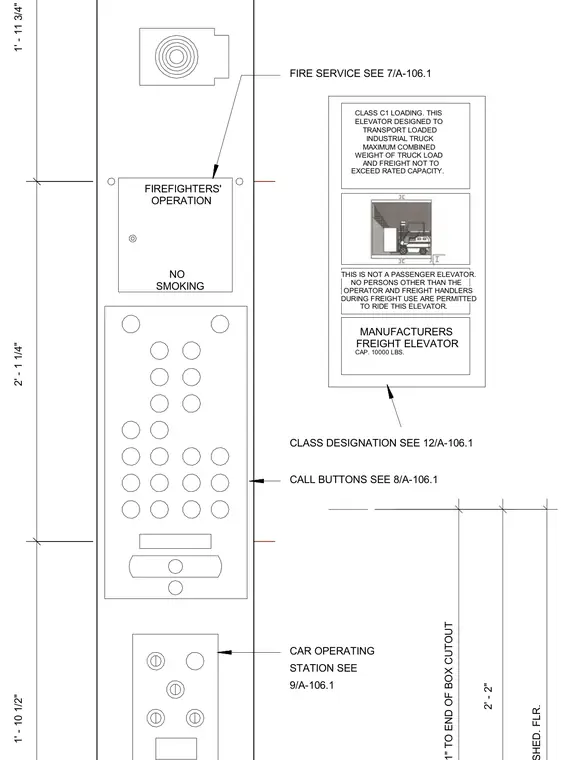

Freight elevator operating station featuring firefighters operation controls, no smoking signage, call buttons, and a car operating station panel. The panel accommodates class C1 loading with a rated capacity of ten thousand pounds. Dimensional callouts indicate mounting heights from the finished floor and box cutout limits.
FIREFIGHTERS' OPERATION NO SMOKING CLASS C1 LOADING. THIS ELEVATOR DESIGNED TO TRANSPORT LOADED INDUSTRIAL TRUCK MAXIMUM COMBINED WEIGHT OF TRUCK LOAD AND FREIGHT NOT TO EXCEED RATED CAPACITY. THIS IS NOT A PASSENGER ELEVATOR. NO PERSONS OTHER THAN THE OPERATOR AND FREIGHT HANDLERS DURING FREIGHT USE ARE PERMITTED TO RIDE THIS ELEVATOR. MANUFACTURERS FREIGHT ELEVATOR CAR OPERATING STATION SEE 9/A-106.1 CALL BUTTONS SEE 8/A-106.1 FIRE SERVICE SEE 7/A-106.1 CLASS DESIGNATION SEE 12/A-106.1 CAP. 10000 LBS. 1' - 10 1/2" 2' - 1 1/4" 1' - 11 3/4" 2' - 2"
