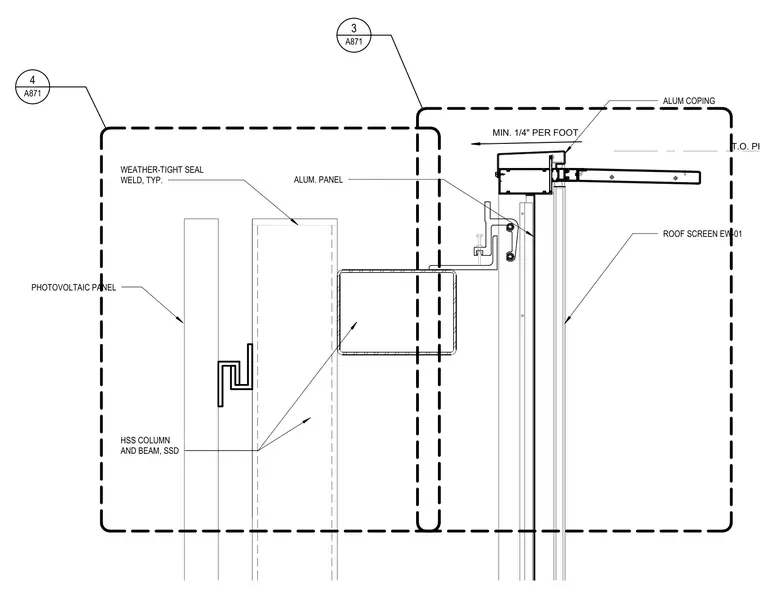

A rooftop mechanical screen assembly constructed with hollow structural section steel columns and beams supports exterior aluminum panels. An aluminum coping caps the top of the assembly, maintaining a minimum slope of 1/4 inch per foot. Weather-tight seal welds are applied typically at structural junctions to ensure weather resistance. A photovoltaic panel is integrated into the assembly with supporting clips and brackets.
T.O. PH1 MECH SCREEN ROOF SCREEN EW-01 ALUM COPING ALUM. PANEL HSS COLUMN AND BEAM, SSD WEATHER-TIGHT SEAL WELD, TYP. MIN. 1/4" PER FOOT PHOTOVOLTAIC PANEL 3 A871 4 A871
