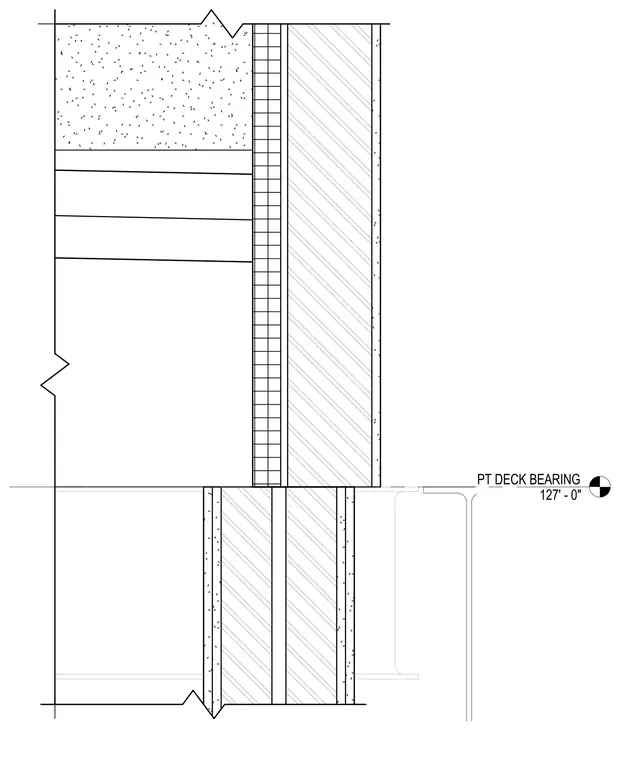

An exterior insulation and finish system transitions at the post-tensioned concrete roof deck, establishing a bearing elevation at 127'-0". The edge of the post-tensioned deck aligns with the exterior wall assembly. The vertical wall assembly incorporates exterior insulation and finish system layers applied over structural backing.
