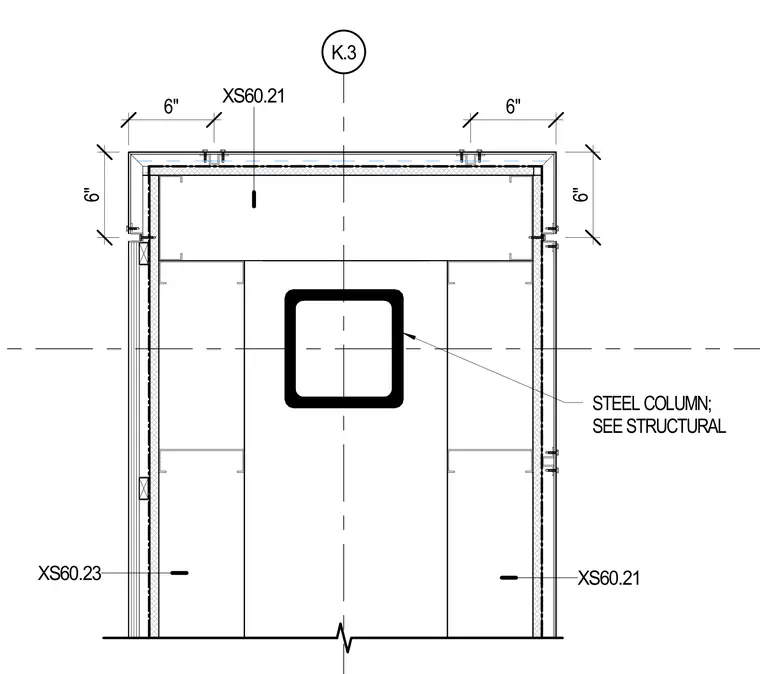

This plan detail shows a steel column enclosed within a framed architectural assembly. The hollow structural section steel column is positioned centrally with reference callouts to structural drawings. Exterior framing surrounds the column with six-inch dimensional clearances indicated on multiple sides. Finish layers and panel components wrap the perimeter assembly.
