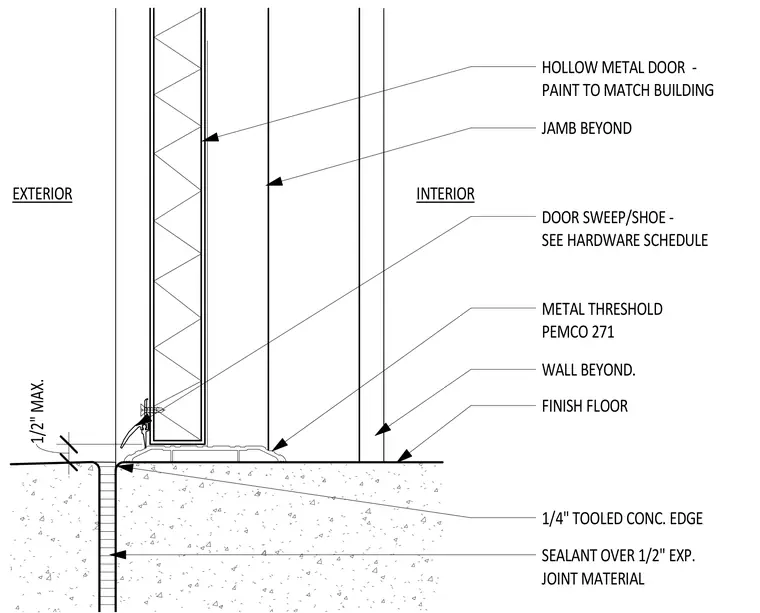

A hollow metal door with a painted exterior finish meets the floor assembly above a metal threshold designated as Pemco 271. A door sweep or shoe is attached to the bottom of the door according to the hardware schedule, maintaining a one-half-inch maximum clearance above the floor finish. The concrete slab edge features a one-quarter-inch tooled edge adjacent to a vertical joint filled with sealant over a one-half-inch expansion joint material. Wall and jamb assemblies extend beyond the threshold on both interior and exterior sides.
WALL BEYOND. JAMB BEYOND FINISH FLOOR METAL THRESHOLD PEMCO 271 1/4" TOOLED CONC. EDGE DOOR SWEEP/SHOE - SEE HARDWARE SCHEDULE SEALANT OVER 1/2" EXP. JOINT MATERIAL HOLLOW METAL DOOR - PAINT TO MATCH BUILDING EXTERIOR INTERIOR 1/2" MAX.
