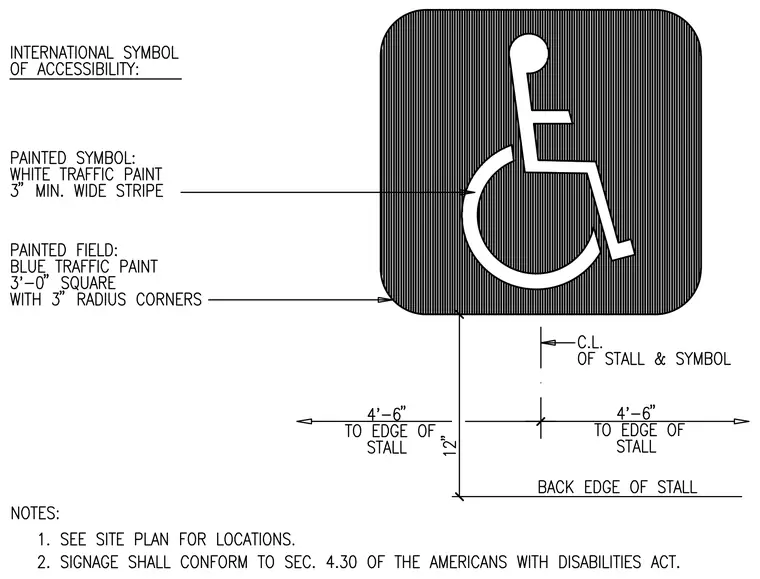

The International Symbol of Accessibility consists of a white traffic paint symbol with a three-inch minimum wide stripe centered within a blue traffic paint field. The painted field forms a three-foot by three-foot square with three-inch radius corners, set twelve inches from the back edge of the stall. Centerline alignment is established four feet six inches from each edge of the stall. Signage and markings conform to Section 4.30 of the Americans with Disabilities Act.
