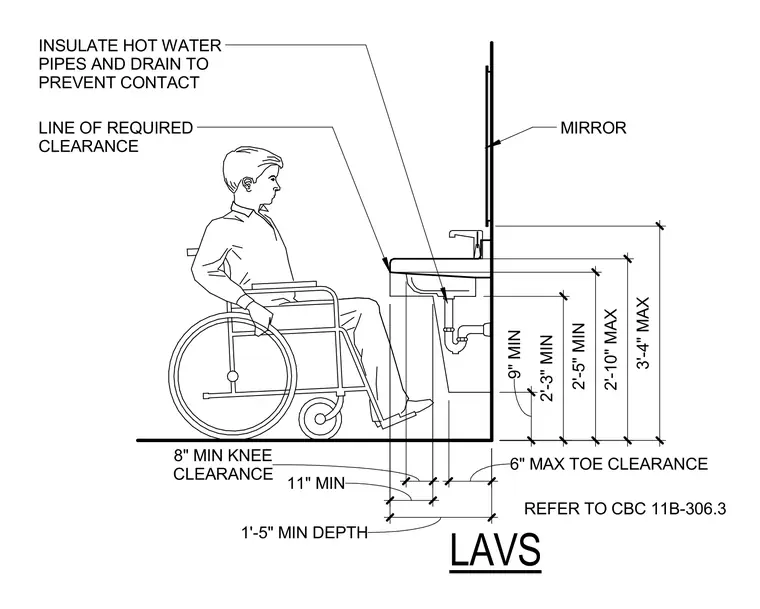

Hot water supply pipes and drains are insulated to prevent contact by wheelchair users. The assembly maintains an eight-inch minimum knee clearance depth and a six-inch maximum toe clearance depth at the base, with an overall minimum depth of one foot five inches. Lavatory rim height is positioned at a maximum of three feet four inches, with the bottom of the apron at a maximum height of two feet ten inches. Clearances comply with CBC Section 11B-306.3.
INSULATE HOT WATER PIPES AND DRAIN TO PREVENT CONTACT LINE OF REQUIRED CLEARANCE CLEARANCE 8" MIN KNEE 6" MAX TOE CLEARANCE 1'-5" MIN DEPTH MIRROR 9" MIN 2'-3" MIN 2'-5" MIN 2'-10" MAX 3'-4" MAX LAVS 11" MIN REFER TO CBC 11B-306.3
