Architectural · A-55KGG

Exit Not Accessible ADA Signage Detail

About this detail

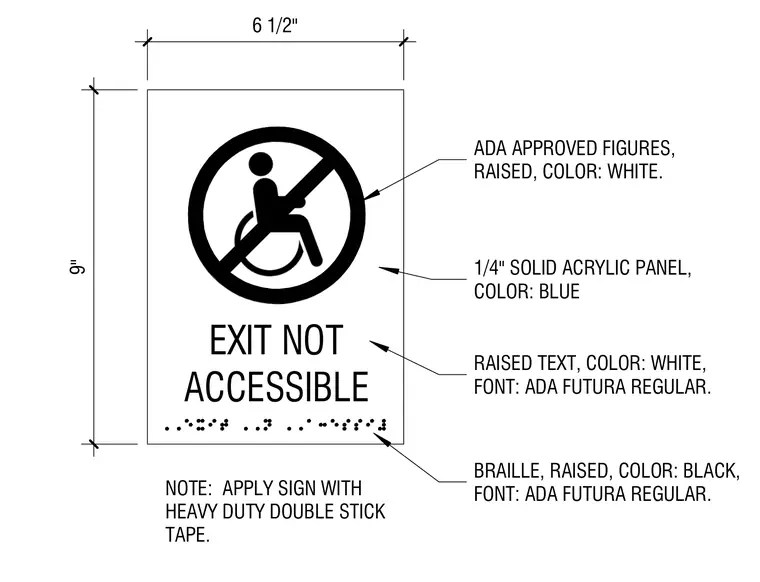

An accessibility sign is constructed from a one-quarter-inch thick solid blue acrylic panel measuring six and one-half inches wide by nine inches high. The face features raised white ADA-approved figures within a prohibition symbol, raised white text reading EXIT NOT ACCESSIBLE in ADA Futura Regular font, and black raised Braille text below. The sign is installed using heavy-duty double-stick tape.
