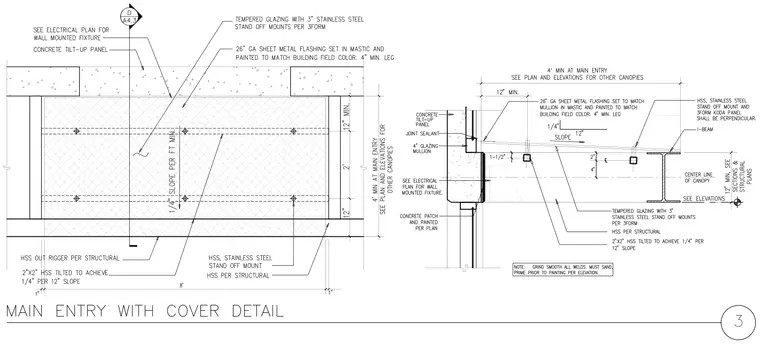

A structural steel I-beam and hollow structural section outrigger support a canopy featuring tempered glazing mounted on stainless steel standoffs. The assembly ties into a concrete tilt-up panel with twenty-six gauge sheet metal flashing set in mastic, joint sealant, and 3Form Koda panels. The canopy framing slopes at one-quarter inch per foot to shed water, supported by custom hollow structural section members welded and ground smooth per structural plans. Electrical provisions and wall-mounted fixtures are coordinated per electrical plans at the concrete patch location.
