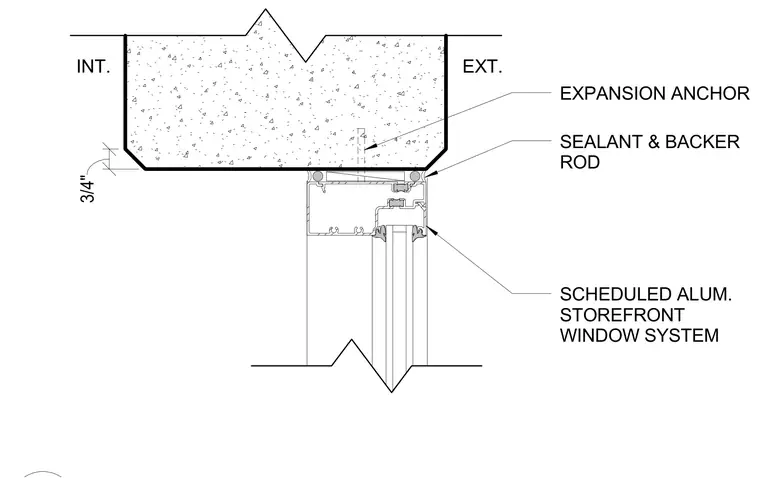

A scheduled aluminum storefront window system head interfaces with an overhead concrete substrate. The storefront framing is secured to the concrete using an expansion anchor. A three-quarter-inch joint between the concrete and aluminum frame receives a backer rod and sealant.
SCHEDULED ALUM. STOREFRONT WINDOW SYSTEM EXPANSION ANCHOR 3/4" SEALANT & BACKER ROD EXT. INT.
